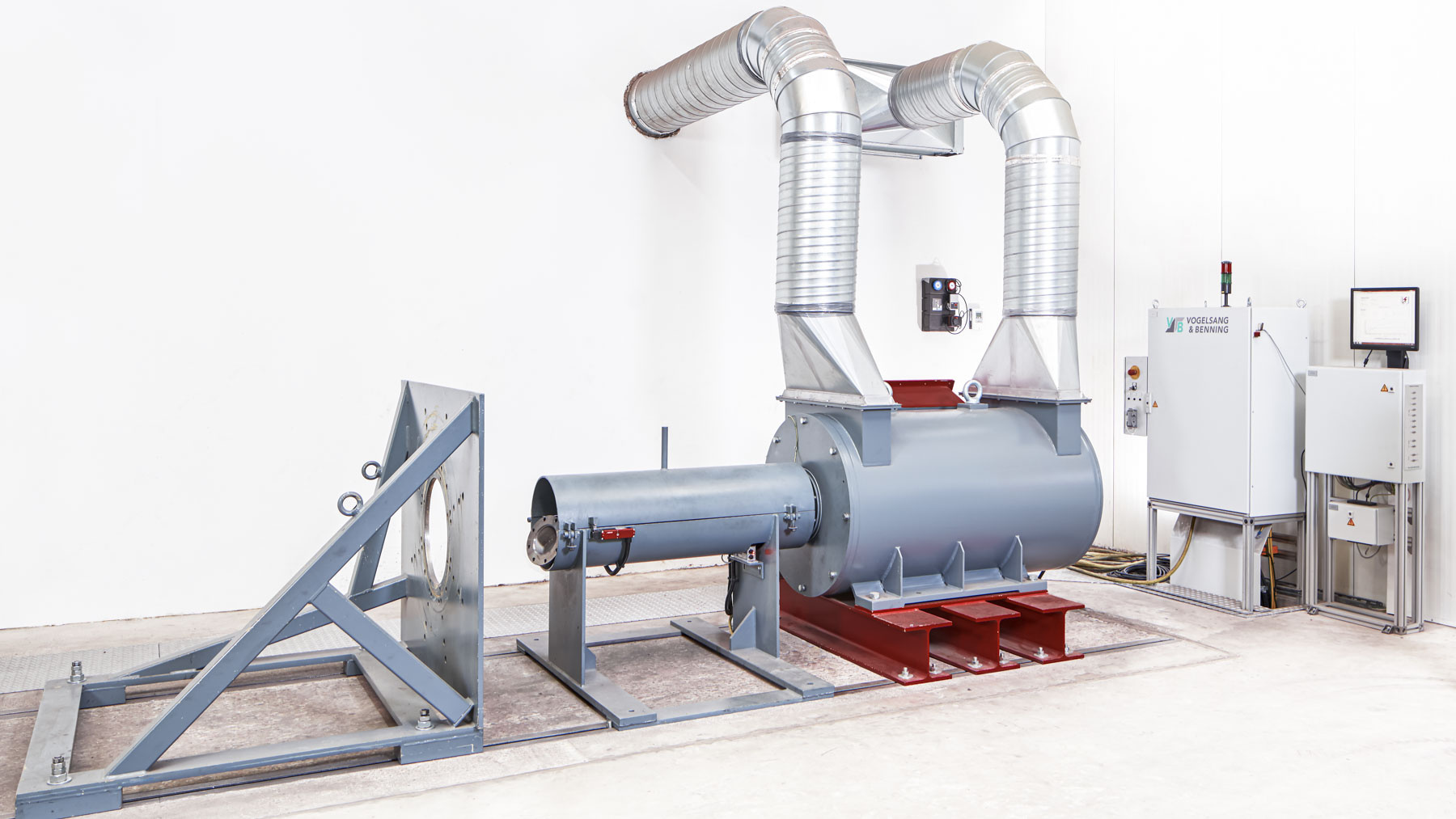

Our load testing facility for electric motors and generators At our modern testing facility in Osnabrück, we offer you the opportunity to test your electric motors and generators and have them certified by a wide range of classification societies.

Our three test stations can handle tests from 60 kW to 2100 kW. Each test station has a water connection for testing water-cooled machines. All test stations are equipped with state-of-the-art electronic and mechanical measurement technology. In addition, we can perform motor tests at ambient temperatures of up to 50°C.

The main applications are energy efficiency tests to determine efficiency classes IE1 to IE4, type tests, and routine tests of both squirrel cage motors operated on frequency converters or mains power and slip ring motors. However, we can also implement any kind of special request for you competently and at short notice.

Our test-benches

The following test-benches can be booked

• Test-bench 1: 1200 kW / 1500 A (continuous current) /
  690 V / 15000 Nm
• Test-bench 2: 600 kW / 680 A (continuous current) /
  690 V / 10000 Nm / IE 1-3 tests

Audit types

The following test can be done with squirrel cage motors, which are operated either by frequency inverter or DOL, as well as with slipring-motors

• Sense of rotation

• Heat-run test

• Temperature monitoring for windings and bearings
• Load test
• Overload test
• No-load test
• Overspeed test
• bearings
• vibration measurement
• high voltage test
• insulation resistance measurement

Classifications

We provide the test of your motors according to the rules of the following classification societies and standards

• DIN EN 60034
• Tests according to Energy efficiency standards IE1, IE2 und IE3
• CSA Certification
• UL – CSA Certification
• Bureau Veritas BV
• Lloyd's Register LR
• American Bureau of Shipping ABS
• Det Norske Veritas DNV
• Polish Register of Shipping (Polski Rejestr Statków) PRS
• Russian Maritime Register of Shipping (Российский морской регистр судоходства) RMROS
• China Classification Society CCS
• Registro Italiano Navale (RINA), Italien
• Korean Register of Shipping (KRS), Korea
• Nippon Kaiji Kyōkai (NK), Japan

We are looking forward to send a quotation based on your specification.
